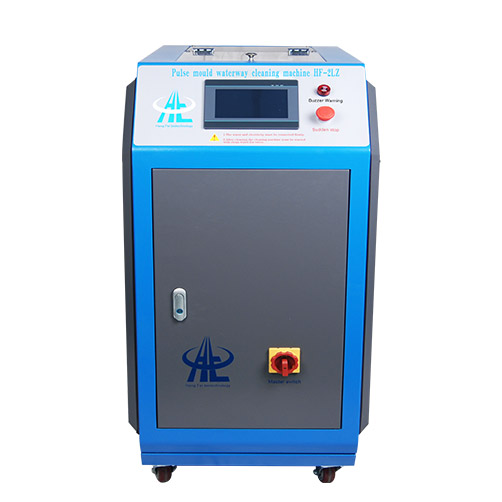

Pulse Mold Waterway Cleaning Machine HF-2LZ (5 in and 5 out)

The pulse mold waterway cleaning machine uses the pulse water molecule blasting technology to form water molecule blasting in the mold waterway. The scale and rust sludge will be blasted into blocks or granules, and then be dissolved it into powder with special cleaning agent and thus be cleaned from the mold waterway without secondary blockage.

Send E-mail Get Price
Share
Product Name Model Quantity
Pulse mold waterway cleaner HF-2LZ 1


Basic performance parameters

Project Description Data
Touch screen Zhongda Youkong
Program controller PLC Zhongda Youkong
The water pump  Grundfos
Pulsed solenoid valve Germany
Stainless steel multistage water pump ≥3KW   protection grade IP54
The pump pressure 7KG
The pulse pressure 8KG
Whole machine size L1130*W560*H1230（mm）
Tank volume 80L(Plastic water tank)
Total electrical capacity ≥4KW
Operating temperature range 5-60℃
Power supply 380v/50HZ（3P+E）
Number of inlet and outlet pipes and diameter of inlet and outlet pipes （4 4fen, 4 1cun, 2 2cun）(Note:1fen is about 0.33333333cm, 1cun is about 3.33333333cm).
Intake pressure 6-8kgf/cm2
The intake pipe diameter 10mm
Pipe Stainless steel 304 seamless tube
Nylon heavy-duty casters 4 actuating wheels, lock function.

Functional configuration and protection configuration

The project content Configuration
The automatic control PLC+ touch screen control, one button start
Pulse cleaning Pulse cleaning, three gears: fast, medium and slow
Blow dry function Automatic blow dry
Positive and negative cleaning Free switch of three pulse gears, positive and negative cleaning
Pressure detection Real-time pressure display, real-time detection
Flow detection Independent flow detection, flow memory
Protection device Overload pump alarm if the water level is too low, the system pressure is too high;
Incase line The wiring bar and terminal in the cabinet are provided with insulation protection to prevent electric shock, the wiring bar is provided with insulation terminal cover (PC material), and the terminal sleeve is provided with insulation number tube.
The power supply is directly connected to the leakage protection device The leakage protection switch is installed
Safety device Equipped with overload and short circuit protection circuit breaker and safety fuse, etc

Matters needing attention

  • Working time: can be used continuously for 72 hours.
  • Power supply: 380V/50HZ
  • Air pressure: 6-8kg

The whole machine

  • The equipment is required to operate normally
  • Alternative plan in case of failure: vulnerable parts are available for timely replacement.
  • Time requirement for cleaning one or more sets of molds (one working cycle) : 2-4 hours.
  • Convenience of maintenance: simple operation, strong convenience, time-saving and labor-saving, no dismantling of molds
  • One set of main nameplate: equipment name, model, manufacturer, factory number, factory date, brief parameters, etc.;
  • Number of cleaning moulds: L50*W50*H50 can clean 6 sets at the same time; 1 out 8 to 96(PET billet mould).

Free accessories

Serial number Name of spare parts Model Specification Quantity Note
1 Cleaning machine / 1 set
2 Fast interface Φ8mm-Φ14mm Mold and machine quick joint
3 Cleaner 0 bag 2 kg/bag
4 The wiring diagram 1 serving English description
5 The instructions 1 serving English description
6 3D operation video 1 serving Public account viewing
