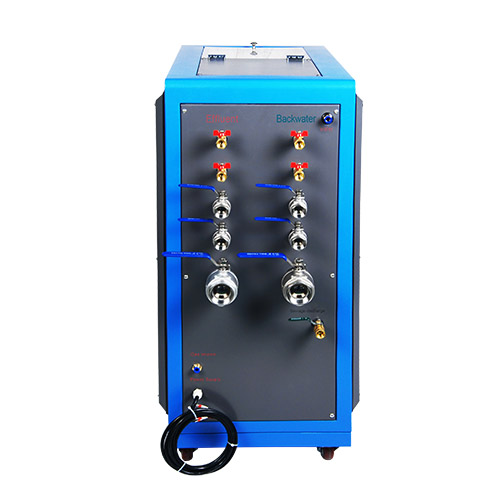

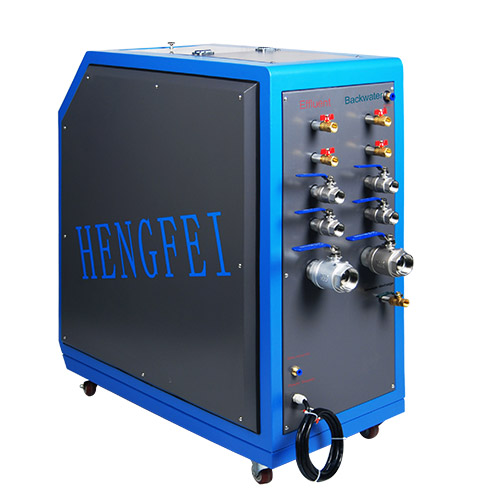

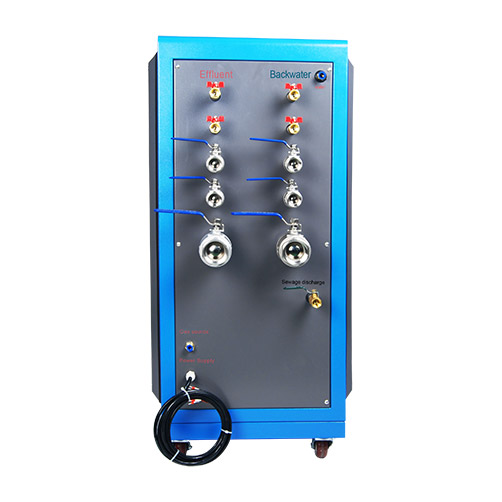

Pulse Mold Waterway Cleaning Machine HF-2LC (5 in and 5 out)

The pulse mold waterway cleaning machine uses the pulse water molecule blasting technology to form water molecule blasting in the mold waterway. The scale and rust sludge will be blasted into blocks or granules, and then be dissolved it into powder with special cleaning agent and thus be cleaned from the mold waterway without secondary blockage.

Send E-mail Get Price
Share
Product Name Model Quantity
Pulse mold water cleaning machine HF-2LC 1


Basic performance parameters:

The project content Requirements
Touch screen Zhongda Youkong
Program controller PLC Zhongda Youkong
The water pump Grundfos
Pulsed solenoid valve Germany
Stainless steel multistage water pump ≥ 3kw protection class IP54
The pump pressure 7KG
Pulse pressure 8KG
Whole machine size L1130*W560*H1230（mm）
The tank volume 80L(Plastic water tank)
Total electrical capacity ≥4KW
Operating temperature range 5-60℃
Power supply 380v/50HZ（3P+E）
Number of inlet and outlet pipes and diameter of inlet and outlet pipes （4 4fen, 4 1cun, 2 2cun）(Note:1fen is about 0.33333333cm, 1cun is about 3.33333333cm).
Inlet pressure 6-8kgf/cm2
Inlet pipe diameter 10mm
Pipe Stainless steel 304 seamless tube
Nylon heavy casters 4 moving wheels, locking function.

Functional configuration and protection configuration

The project content Configuration
The automatic control PLC+ touch screen control, one-click start
Pulse cleaning Pulse cleaning, three gears: fast, medium and slow
Blow dry function Automatic blow dry
Protection device Overload pump alarm if the water level is too low, the system pressure is too high;
Incase line Inside the cabinet, the wiring blocks and terminals are installed with insulation protection against electric shock. The wiring blocks are installed with insulated terminal cover (PC material), and the terminals are covered with insulation number pipes.
The power supply is directly connected to the leakage protection device The leakage protection switch is installed
Safety device Equipped with overload and short circuit protection circuit breaker and safety fuse, etc

Matters needing attention

  • Working time: it can be used continuously for 72 hours.
  • Power supply: 380v/50 hz
  • Air pressure: 6-8kg

Complete machine

  • The equipment must operate normally
  • Alternative plan in case of failure: vulnerable parts are available for timely replacement.
  • Time requirement for cleaning one or more sets of molds (one working cycle) : 2-4 hours
  • Maintenance convenience: simple operation, strong convenience, time and effort saving, do not dismantle the molds
  • One set of main nameplate: equipment name, model, manufacturer, factory number, factory date, brief parameters, etc.;
  • Number of cleaning moulds: L50*W50*H50 can clean 6 sets at the same time; 1 out 8 to 96(PET billet mould).

Free accessories

number Name of spare parts Type specification quantity Note
1 Cleaning machine / 1set
2 Fast interface Φ8mm-Φ14mm Quick connection between mold and machine
3 Cleaning agents 1bag 2kg/bag
4 The wiring diagram 1 English description
5 The instructions 1 English descriptio
6 3D operational video Viewing on public account
