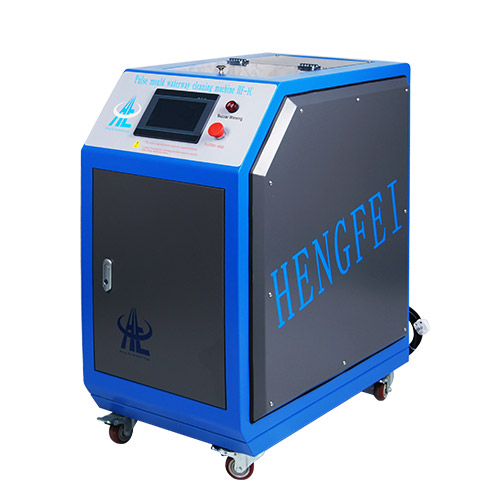

Pulse Mold Waterway Cleaning Machine HF-1C

The pulse mold waterway cleaning machine uses the pulse water molecule blasting technology to form water molecule blasting in the mold waterway. The scale and rust sludge will be blasted into blocks or granules, and then be dissolved it into powder with special cleaning agent and thus be cleaned from the mold waterway without secondary blockage.

Send E-mail Get Price
Share
Product Name Model Quantity
Pulse mold waterway cleaning machine HF-1C 1


Basic performance parameters:

Project Description Data
Touch screen Zhongda Youkong
Program controller PLC Zhongda Youkong
The water pump  Grundfos
Pulsed solenoid valve Germany
Stainless steel multistage water pump ≥0.75KW  Protection grade IP54
The pump pressure 3KG
The pulse pressure 8KG
Whole machine size L985*W560*H1080(mm)
Tank volume 70L（Plastic water tank）
Total electrical capacity ≥1.8KW
Operating temperature range 5-60℃
Power supply 220v/50HZ

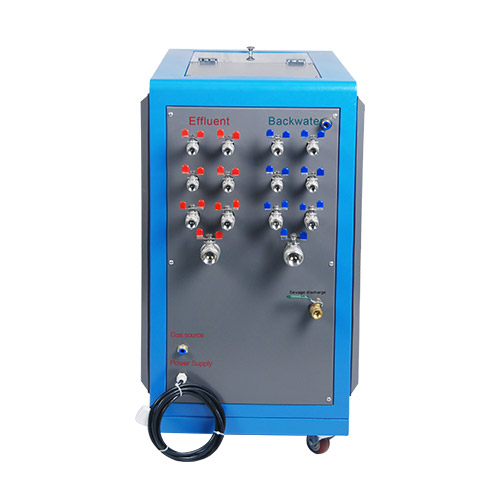

Number of inlet and outlet pipes and diameter of ≥0.75KWinlet and outlet pipes 6 in 6 out (3/8 "), one in one out (1 ")
Intake pressure 6-8kgf/cm2
Intake pipe diameter 10mm
Pipe Stainless steel 304 seamless tube
Nylon heavy-duty casters 4 actuating wheels, lock function.

Functional configuration and protection configuration

The project content Configuration
The automatic control PLC+ touch screen control, one button start
Pulse cleaning Three gears: fast, medium and slow
Blow dry function Automatic blow dry
Protection device Overload pump alarm if the water level is too low, the system pressure is too high;
Incase line The wiring bar and terminal in the cabinet are provided with insulation protection to prevent electric shock, the wiring bar is provided with insulation terminal cover (PC material), and the terminal sleeve is provided with insulation number tube.
The power supply is directly connected to the leakage protection device The leakage protection switch is installed
Safety device Equipped with overload and short circuit protection circuit breaker and safety fuse, etc

Matters needing attention

  • Working time: can be used continuously for 72 hours.
  • Power supply: 220V/50HZ
  • Air pressure: 6-8kg

The whole machine

  • The equipment is required to operate normally
  • Alternative plan in case of failure: vulnerable parts are available for timely replacement.
  • Time requirement for cleaning one or more sets of molds (one working cycle) : 2-4 hours.
  • Convenience of maintenance: simple operation, strong convenience, time-saving and labor-saving, no dismantling of molds
  • One set of main nameplate: equipment name, model, manufacturer, factory number, factory date, brief parameters, etc.
  • Number of cleaning molds: L50*W50*H50 can be used to clean 6 sets at the same time.

Free Accessories

Serial number Name of spare parts Model Specification Quantity Note
1 Cleaning machine / 1 set
2 Fast interface Φ12mm，20 Mold and machine quick joint
3 Cleaner 0 bag 2 kg/bag
4 The wiring diagram 1 serving English description
5 The instructions 1 serving English description
6 3D operation video 1 serving Public account viewing
